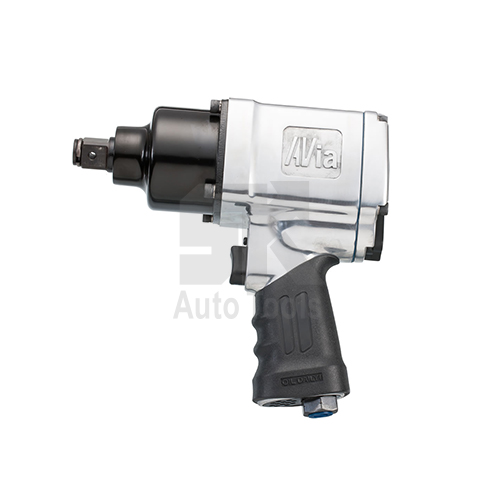

AV-2634
3/4"Dr.Super duty impact wrench
*Most powerful (1,300 Ft-lbs) & lightweight (4.6 kgs) 3/4” impact wrench delivers excellent power-to-weight ratio in its class.
*Refined twin hammer impact mechanism and high speed motor increasing energy of each blow and doubling the life
*Anvil & hammer are made of Ni-Cr-Mo alloy steel with triple cycle heat treatment to submit long, trouble-free service
*Rigid hammer housing made of hot forged steel and fully machined for safe operation
*One-piece hammer housing with pilot lip provide the best alignment from motor to anvil
*Ductile cast iron cylinder plates with nitrogen treatment ensure max.
*Variable power control by trigger
*Six-position power management operated by turn-knob in forward & reverse
- Working Torque Range: 200–900 Ft/Lbs (271 ~ 1220 NM)
- Max. Torque: 1,300 Ft/Lb. (1761 NM) measured by Skid-more Hydraulic tension tester (model RL) with 1-1/4” standard bolt & 2” nut/socket, reference model IR-2141
- Free Speed: 5500 RPM
- Air Inlet: 3/8” NPT (PT)* Recommend air pressure: 90 PSI (6.35 kgs)
- Min. Hose Size: 1/2” (12.5 mm)
- Overall Length: 8.27” (210 mm)
- Weight: 10.12 LBS (4.6 kgs)
(Twin Hammer Impact Mechanism)
