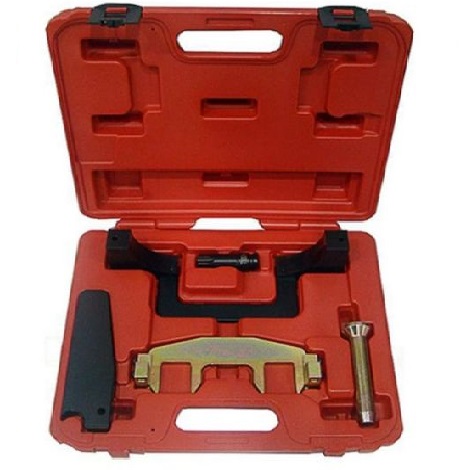

PRODUCT DETAILS
Application:
Mercedes Benz (M271)

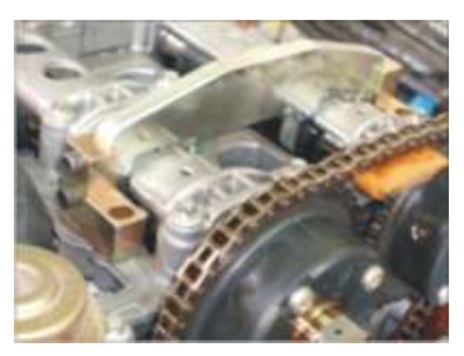

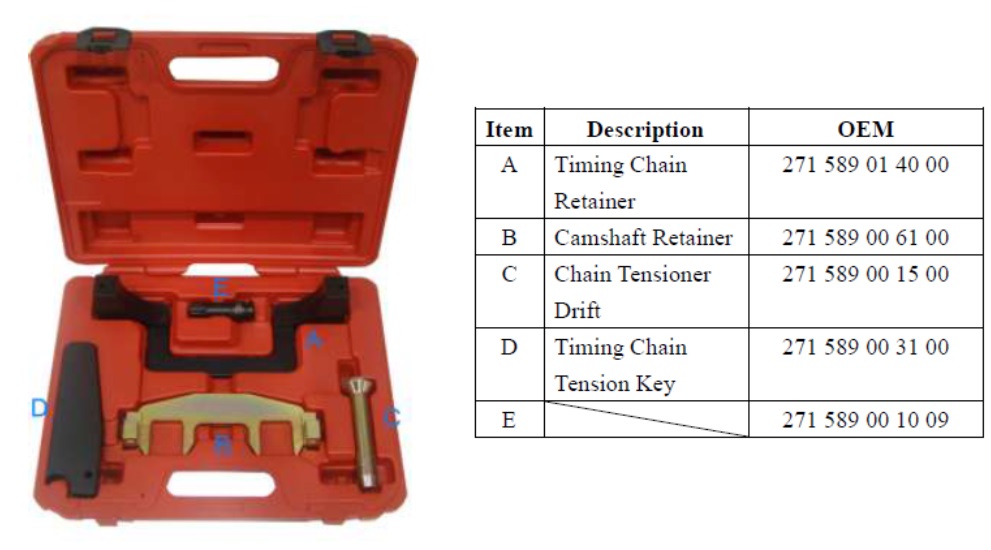

(A) - Use for drawing in the timing chain. Retain the timing chain with the camshaft sprocket in mesh.
(B) - make it possible to position the camshaft in the installed position.
(B) - make it possible to slacken and tighten the bolts attaching the camshaft gear.
(C) - to install the plug into the timing case covering (access to the chain tensioner).
(D) - for unloading the timing chain tensioning device. Release the timing chain (1). To do this, (D) in the
timing case and push back the tensioning rail (2).
(E) - for removal of the crankshaft front gear wheel. Release the timing chain (1).
To do this, insert (B) in the timing case and push back the tensioning rail (2).
