SK-2136

SK-2136

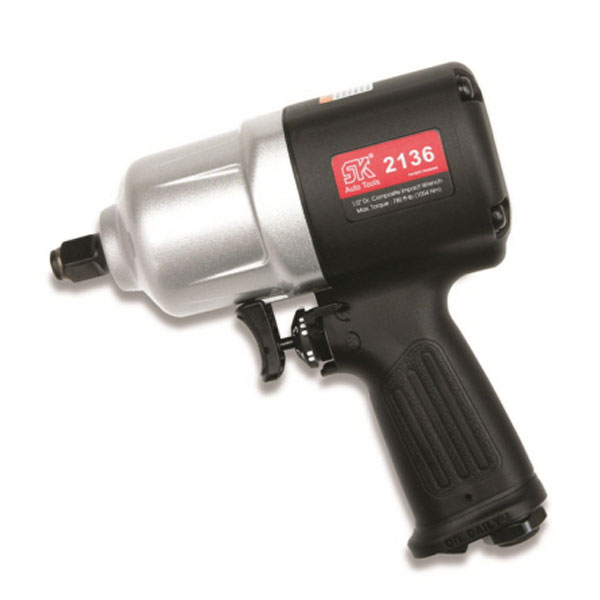

1/2"Dr. Ultra Duty Composite Impact Wrench

*Highest power-to-weight rate delivers 1,100 ft-lbs Nut Busting Torque
*Short body (6.7" / 170mm) for easy getting into the tight working area
*Refined twin hammer impact mechanism plus bias motor design providing max. Torque output in reverse.
*Feather touch trigger provides extremely precise & smooth speed control
*One-hand operated forward/ reverse.
*Patented forward/reverse switch that shifts left-hand operation to right-hand operation within seconds.
*3-position power setting regulator in forward and 3-position in reverse

Add to inquiry
PRODUCT DETAILS
Specification:
  1. Nut-Busting Torque: over 1,100 ft-lb ( 1,486 Nm)
  2. Traditional Max. Torque: 780 ft-lb (1054 Nm) in reverse, tested by Skidmore hydraulic tension tester (model RL) with 1-1/4" standard bolt & 2" nut/socket, reference model IR-2135TiMAX
  3. Working Torque : 50 ~ 600 ft-lb ( 68 ~ 810 Nm)
  4. Blow per Min.: 1,250
  5. No-load speed: 8000 RPM +/- 10%
  6. Recommend air pressure: 90 PSI (6.35 kgs)
  7. Air Inlet: 1/4” NPT (PT)
  8. Sound dBA pressure : 96 dBA (OS-6112Q: 90 dBA)
  9. Avg. Air Consumption: 3.98 CFM
  10. Min. Hose Size: 3/8” (10 mm) I.D.
  11. Overall Length: 6.7” (171 mm)
  12. Weight: 4.29 LBS (1.95 kgs)

          (Twin Hammer Impact Mechanism)
